Lite HiDosing Smart Irrigation Kit

Benefits:

• Automated watering based on user-scheduled times via smartphone app
• Water conservation through drip irrigation system
• Enhanced crop productivity and growth

Main Components:

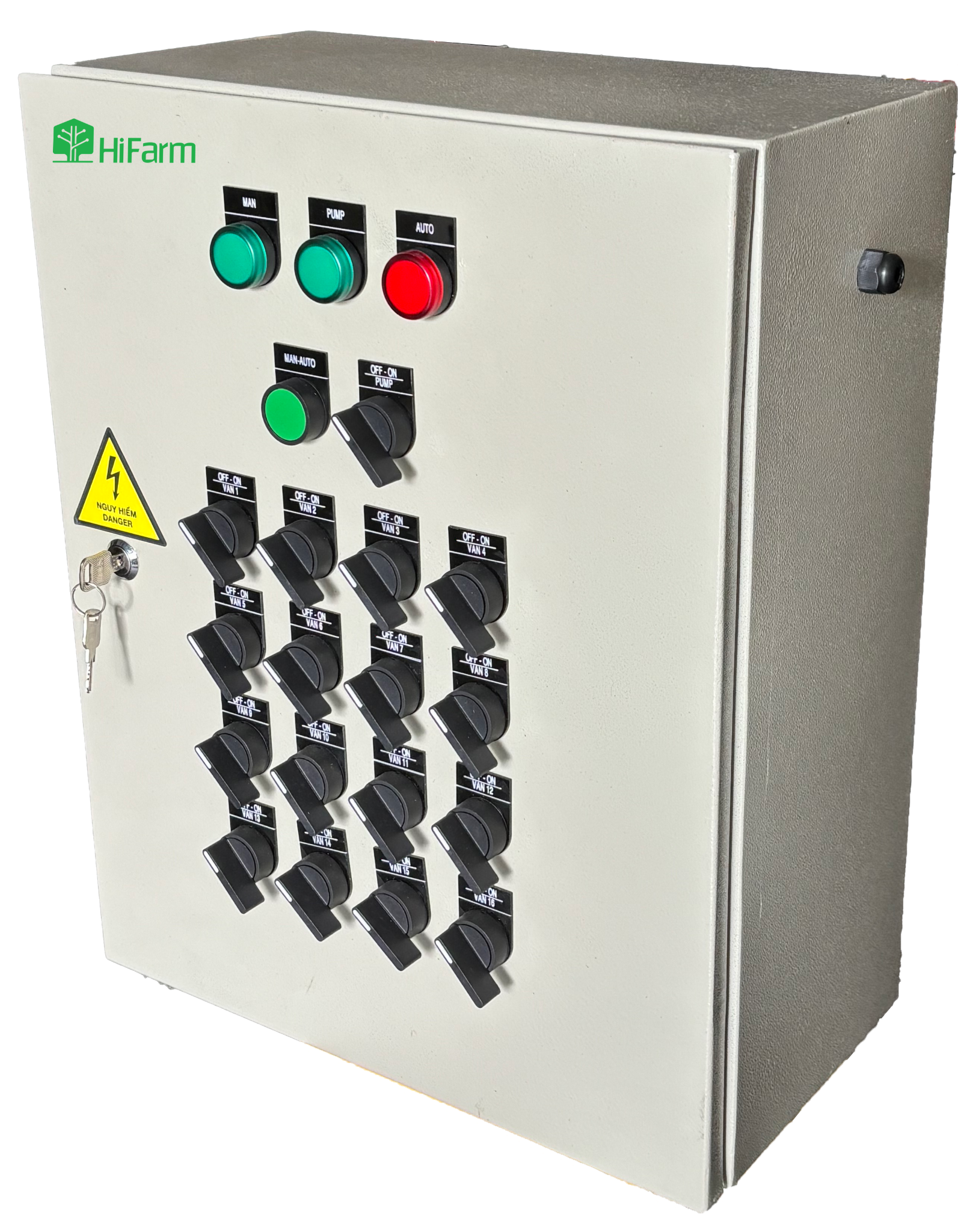

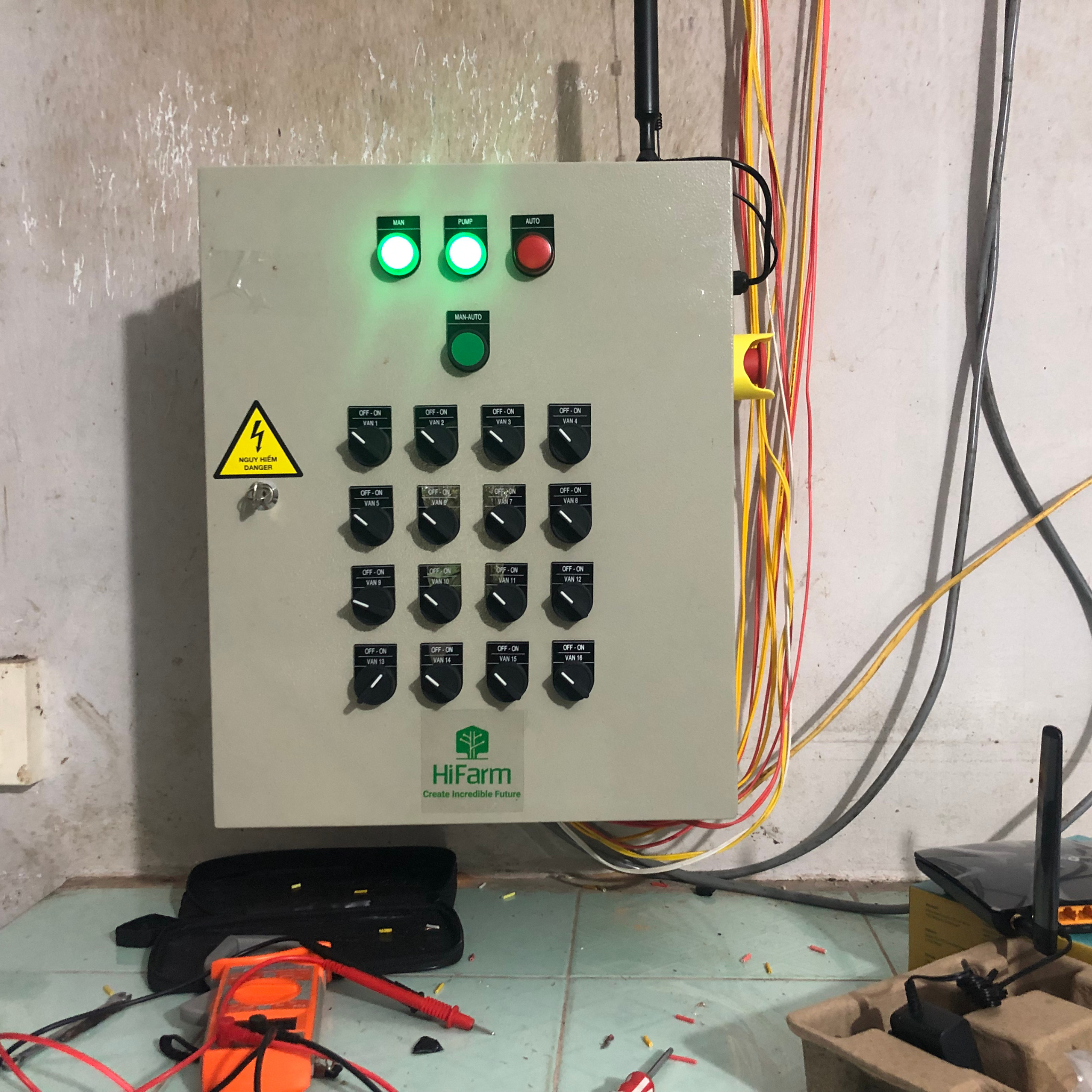

• Control cabinet
• Soil sensor
• 24V electric ball valve (safety-certified), compatible with pipe sizes (21 - 27 - 34 - 42 - 49 - 60mm)
• Water pump
• Mobile control application

Key Features:

• Remote control via smartphone (WiFi-enabled)
• Automatic shutdown when pump fails to draw water
• Power backup (valves can close even during sudden power outages)
• Automated scheduling based on pre-set programs
• Versatile irrigation programs (by seconds/minutes/hours or water volume)
• Monitoring and control through multiple sensor types
• Zone-based irrigation control (individual plots, beds, or entire farm)
• User-friendly interface with fast access, simple operation, bilingual support (Vietnamese/English)
• Activity history tracking directly on HiFarm app
• Manual valve override mode (for power outages or system failures)
• Error alerts when issues occur during system operation

System Workflow:

• Scheduled time arrives based on app settings
• Signal transmits to control center (server)
• Control center sends command to control cabinet
• Control cabinet executes commands to field devices
• Pump receives activation signal and begins water delivery
• Distribution valves regulate water flow to designated zones
• System automatically times pump shutdown and gradually closes valves
• Irrigation cycle completes

Technical Specifications:

• For single-phase 220V motors: Maximum 3 HP, water flow up to 22 m³/h
• For three-phase 380V motors: Maximum 10 HP, water flow up to 85 m³/h

Warranty:

• 1-year hardware warranty
• Lifetime software support for the duration of use
• Guaranteed system troubleshooting response within 24 hours (if issues arise)
